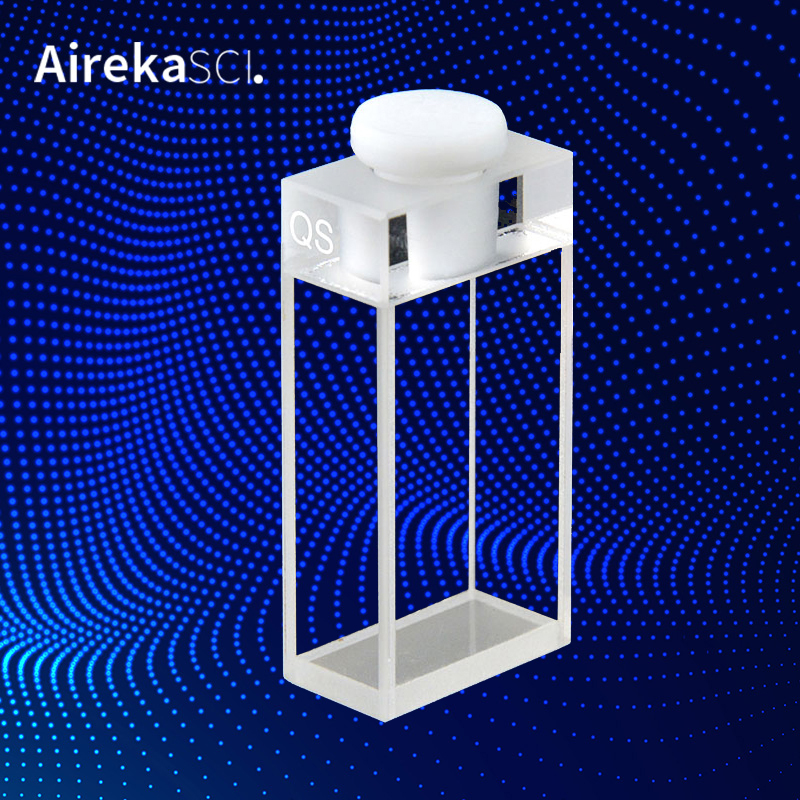

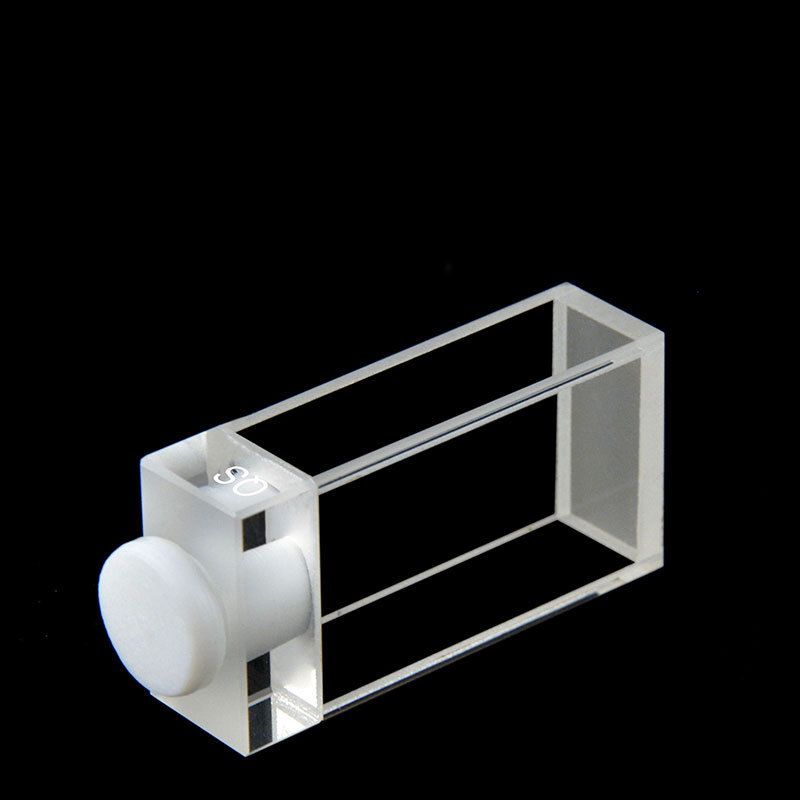

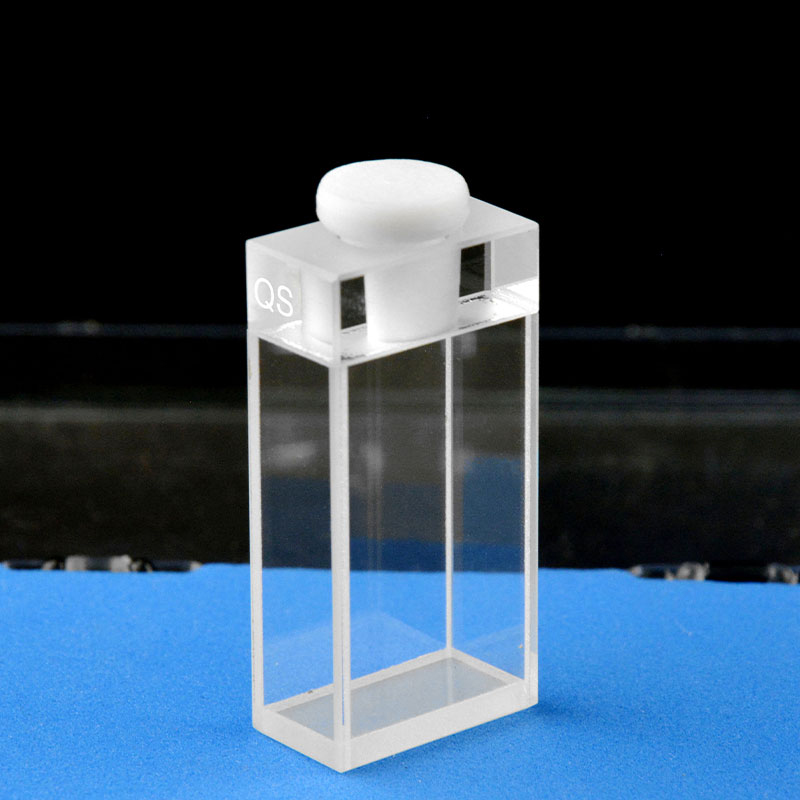

20 / 10 mm Macro Cuvette with Stopper Cap, 4 Windows, QGS20D
The Dual Pathlength Cuvette is a specialized piece of equipment with a 20 x 10 mm size and 7 mL capacity, complete with a convenient screw cap to facilitate fluorescence experiments. Designed for precise results, this cuvette allows scientists to perform experiments requiring two different pathlengths without the need for recalibration, streamlining the research process and increasing accuracy.
$185.00
The QGS20D is a high-quality macro-cuvette that can be used to study and measure changes in surface energy on films, solutions, suspensions, and gases without the need for sensors. This 20/10 mm fused quartz cell offers an inner path length of 20x10mm for optimal accuracy when measuring temperature changes in a reaction or experiment.
Thanks to its PTFE Stopper Cap, it offers protection against both contamination and vaporization. It also features four polished windows with a 200 – 2,500 nm Spectral Range to easily pick up light signals. The chamber’s volume capacity is 7,000 μL allowing you to fit large samples while remaining resistant to many chemicals commonly used in experiments. Make sure your experiments meet all standards with the superior quality QGS20D macro-cuvette!
| 0 | 1 | 2 | 3 | ||
|---|---|---|---|---|---|
| *Molded | *Fused | *Bonded / Glued | |||
| UV vis ( 190- 2500 nm) | Yes | Yes | Yes | ||
| Transmission Matched | Yes | Yes | Yes | ||
| Transmission > 80% | Yes | Yes | Yes | ||
| Resistant to Acids and Bases (except hydrofluoric acid) | Yes | Yes | No | ||
| Resistant to Organic Solvents | Yes | Yes | No | ||
| Usable upto 500°C (932°F) | Yes | Yes | No | ||
| Usable upto 1200°C (2192°F) | Yes | No | No | ||
| 0 Variations Reading | On Request | No | No | ||
| Fabrication | Molded | Assembled with Quartz Powder | Assembled with Glue | ||
| Adhesives | No | No | Yes | ||
| Storage | Short Term Storage | Clean After Use | Clean After Use | ||
| Available Material | ES Quartz Material | ||||
| Note | Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm. | ||||
To the best of our knowledge, the information provided here is accurate. However, Aireka Scientific assumes no liability for the accuracy of this page. The values provided are typical at the time of manufacture and may vary over time and from batch to batch. All products are for laboratory and research and development use only, and may not be used for any other purpose including health care, pharmaceuticals, cosmetics, food, or commercial applications.
| Weight | 110 g |
|---|---|
| Options | 20-10mm-4-Windows |

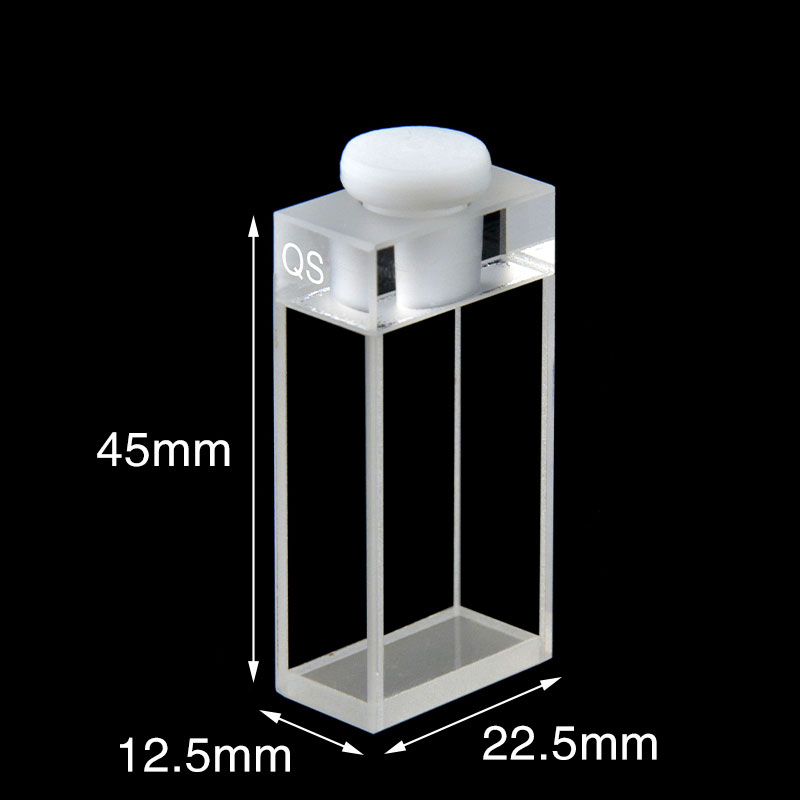

| QGS20D | 20-10mm-4-Windows | 20 / 10 mm, PTFE Stopper Cap Included. Fused, Resistant to Most Chemicals. H x W x D: 45 x 22.5 x 12.5 mm, Pathlength: 20 x 10 mm, 4 Polished Windows. Material: Quartz, 200 – 2,500 nm Spectral Range, Chamber Volume 7,000 μL, Detection Method: Fluorometric |
