10/50/100/200ul Cuvettes, Cuvettes, Sub Low Volume Cuvette, Sub-Micro Cuvettes

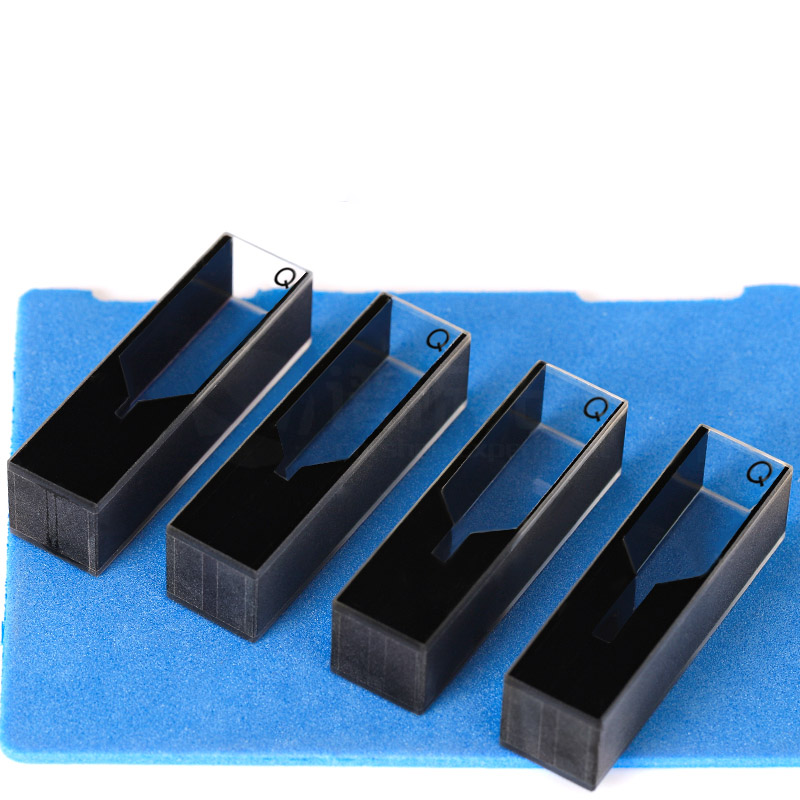

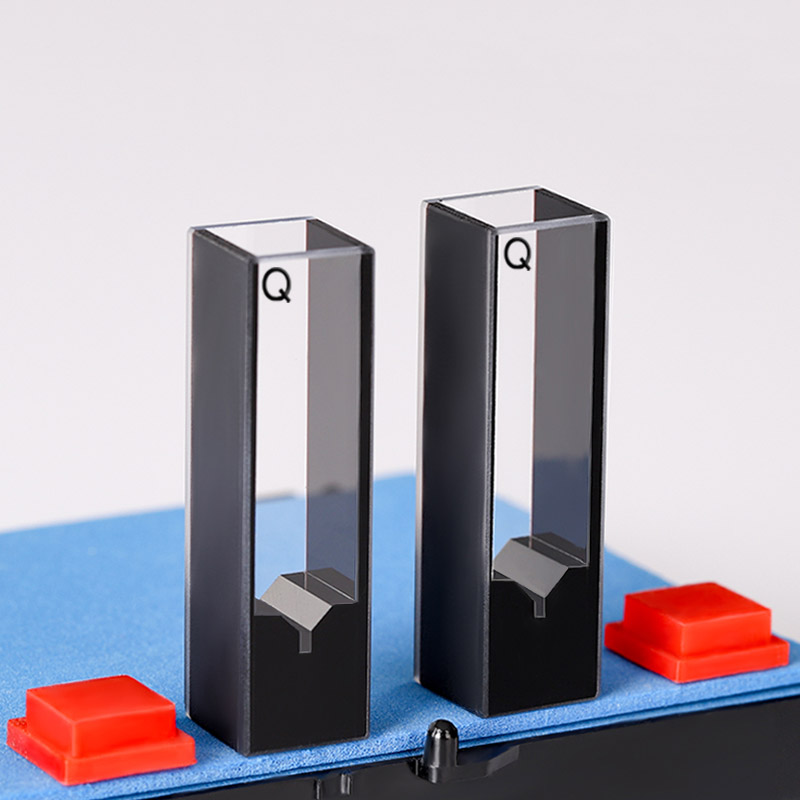

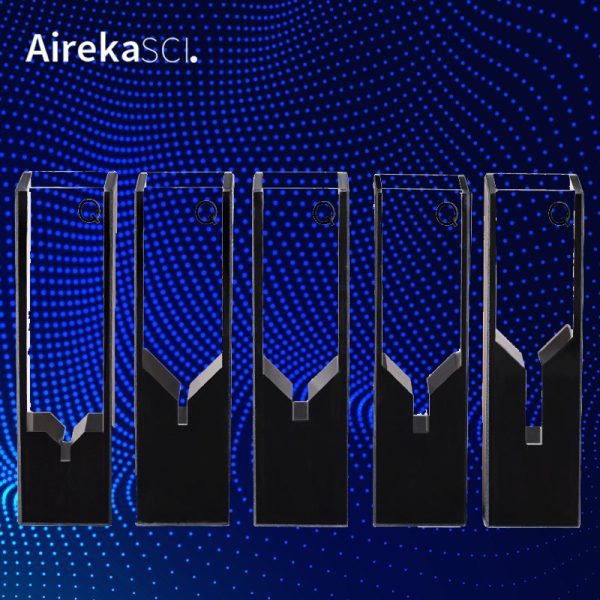

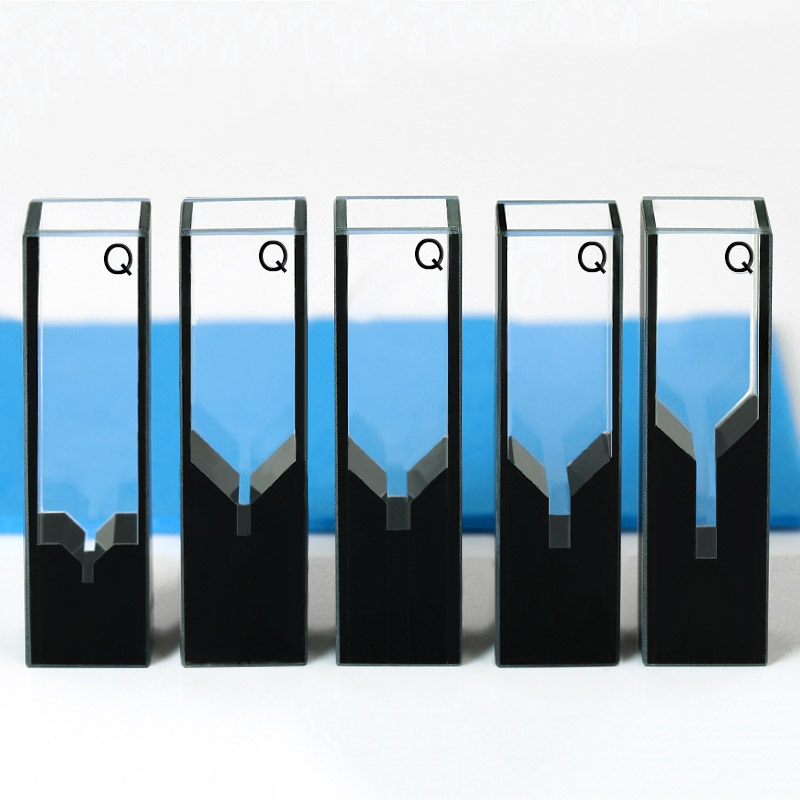

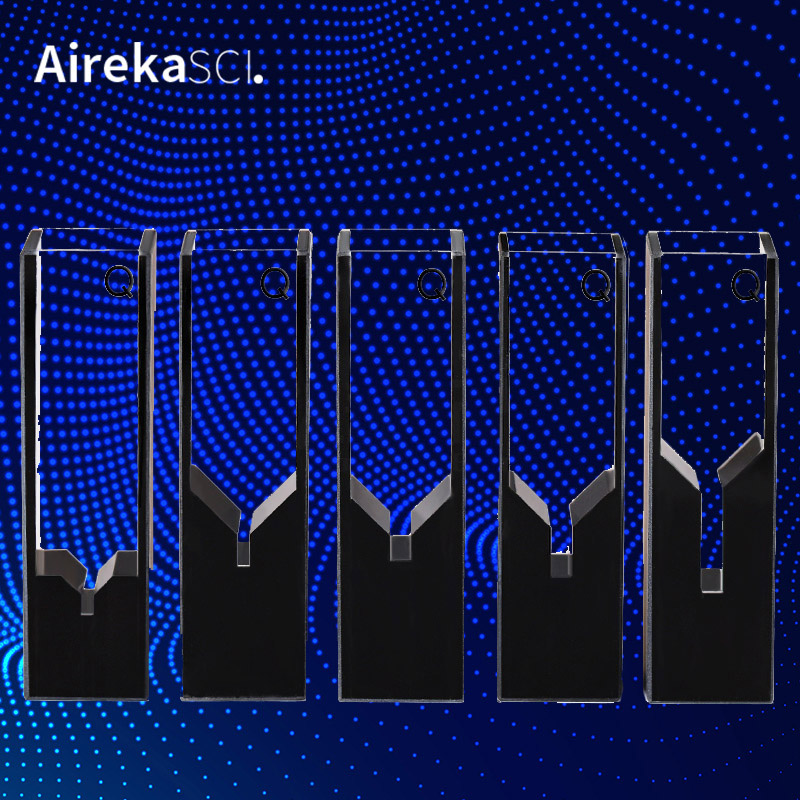

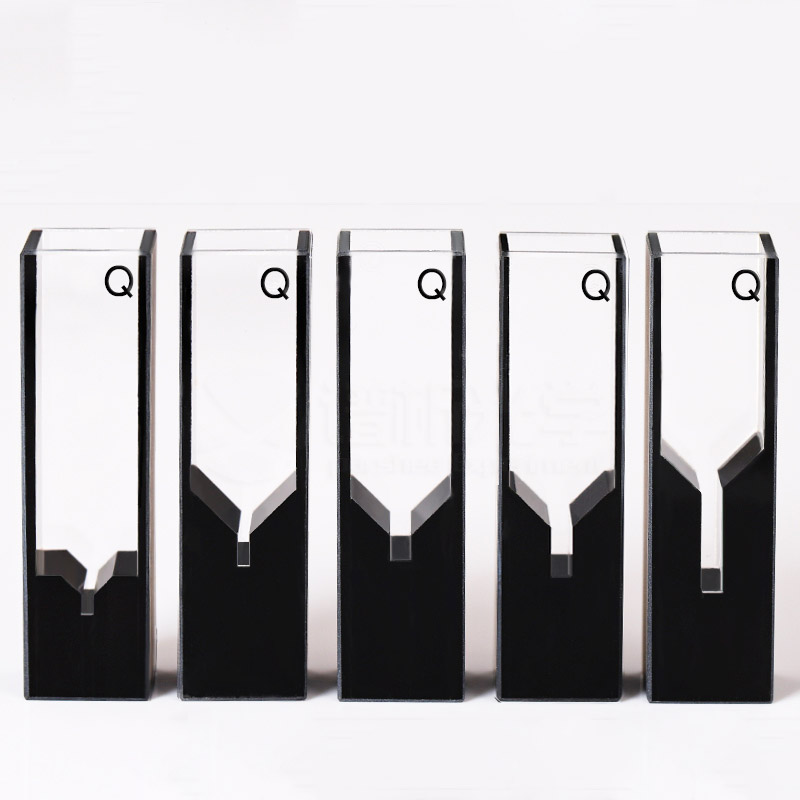

20 – 300 uL Black Wall Sub-Micro Cuvettes, QGM220
Looking for a cuvette to measure the absorption spectrum of your sample in a spectrometer? These Black Wall Quartz Cuvettes offer a volume range of 20 – 300 μL, with a Z dimension of 15 mm, and are compatible with most spectrometers out there. Made with high-quality black quartz, they ensure high accuracy and repeatability for all your experiments. Order yours today and take your research to the next level!
$74.00 – $121.00
As a researcher, you know that precision and consistency are key. When it comes to obtaining accurate results, you can’t go wrong with the 20 – 300 uL Black Wall Sub-Micro Cuvettes from QGM220. These high-quality Quartz Cuvettes offer a volume range of 20 – 300 μL, with a Z dimension of 15 mm and are compatible with many popular spectrometers.
What makes these cuvettes stand out is their superior design, which ensures optimal results every time. Not only are they engineered for high accuracy and repeatability, but they’re also built tough from black quartz, making them highly reliable and able to withstand repeated use without cracking or breaking down.
So if you’re looking to take your experiments and measurements to the next level and achieve top-quality results, these cuvettes are a must-have for your research lab. Don’t wait – order yours today and see the difference for yourself!
Z dimension of Sub-Micro Cuvettes is available 8.5 / 15 / 20 mm for customization on request. Please email us: [email protected].
| 0 | 1 | 2 | 3 | ||
|---|---|---|---|---|---|
| *Molded | *Fused | *Bonded / Glued | |||
| UV vis ( 190- 2500 nm) | Yes | Yes | Yes | ||
| Transmission Matched | Yes | Yes | Yes | ||
| Transmission > 80% | Yes | Yes | Yes | ||
| Resistant to Acids and Bases (except hydrofluoric acid) | Yes | Yes | No | ||
| Resistant to Organic Solvents | Yes | Yes | No | ||
| Usable upto 500°C (932°F) | Yes | Yes | No | ||
| Usable upto 1200°C (2192°F) | Yes | No | No | ||
| 0 Variations Reading | On Request | No | No | ||
| Fabrication | Molded | Assembled with Quartz Powder | Assembled with Glue | ||
| Adhesives | No | No | Yes | ||
| Storage | Short Term Storage | Clean After Use | Clean After Use | ||
| Available Material | ES Quartz Material | ||||
| Note | Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm. | ||||
To the best of our knowledge, the information provided here is accurate. However, Aireka Scientific assumes no liability for the accuracy of this page. The values provided are typical at the time of manufacture and may vary over time and from batch to batch. All products are for laboratory and research and development use only, and may not be used for any other purpose including health care, pharmaceuticals, cosmetics, food, or commercial applications.
| Weight | 50 g |
|---|---|

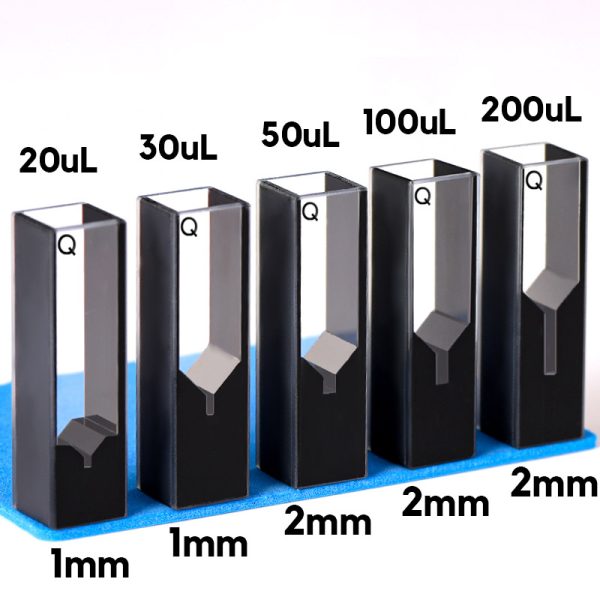

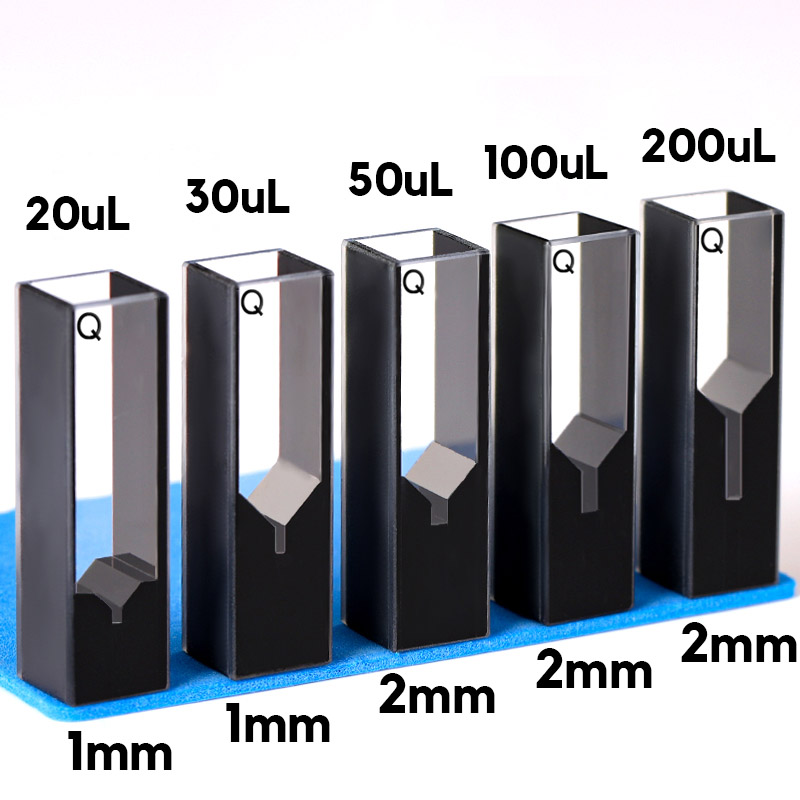

| Options | 20uL-10mm, 30uL-15mm, 50uL-15mm, 100uL-15mm, 200uL-15mm, 50uL-15mm-New, 100uL-15mm-New, 200uL-15mm-New, 300uL-15mm-New, 50uL-8.5mm-All-Black, 50uL-15mm-All-Black, 50uL-20mm-All-Black, 100uL-8.5mm-All-Black, 100uL-15mm-All-Black, 100uL-20mm-All-Black |
| QGM220 | 20 – 300 uL Black Wall Sub-Micro Cuvettes | Black Wall Quartz Absorption Cuvettes with 20 – 300 μL Volume, Z dim of 15 mm. Fit Most Spectrometers. |
| QGM220-01 | 20uL-10mm | 20 μL Black Cuvette, Z dim: 10 mm. Lid Included. Bonded / Glued, for Aqueous Samples Only. H x W x D: 45 x 12.5 x 12.5 mm, Pathlength: 10 mm, Aperture: 1 x 2 mm, 2 Polished Windows. Material: Quartz, 200 – 2,500 nm Spectral Range. Chamber Volume 20 μL, Detection Method: Photometric, UV / Vis Spectroscopy |
| QGM220-02 | 30uL-15mm | 30 μL Black Cuvette, Z dim: 15 mm. Lid Included. Bonded / Glued, for Aqueous Samples Only. H x W x D: 45 x 12.5 x 12.5 mm, Pathlength: 10 mm, Aperture: 1 x 3 mm, 2 Polished Windows. Material: Quartz, 200 – 2,500 nm Spectral Range. Chamber Volume 30 μL, Detection Method: Photometric, UV / Vis Spectroscopy |
| QGM220-03 | 50uL-15mm | 50 μL Black Cuvette, Z dim: 15 mm. Lid Included. Bonded / Glued, for Aqueous Samples Only. H x W x D: 45 x 12.5 x 12.5 mm, Pathlength: 10 mm, Aperture: 2 x 2.5 mm, 2 Polished Windows. Material: Quartz, 200 – 2,500 nm Spectral Range. Chamber Volume 50 μL, Detection Method: Photometric, UV / Vis Spectroscopy |
| QGM220-04 | 100uL-15mm | 100 μL Black Cuvette, Z dim: 15 mm. Lid Included. Bonded / Glued, for Aqueous Samples Only. H x W x D: 45 x 12.5 x 12.5 mm, Pathlength: 10 mm, Aperture: 2 x 5 mm, 2 Polished Windows. Material: Quartz, 200 – 2,500 nm Spectral Range. Chamber Volume 100 μL, Detection Method: Photometric, UV / Vis Spectroscopy |
| QGM220-05 | 200uL-15mm | 200 μL Black Cuvette, Z dim: 15 mm. Lid Included. Bonded / Glued, for Aqueous Samples Only. H x W x D: 45 x 12.5 x 12.5 mm, Pathlength: 10 mm, Aperture: 2 x 10 mm, 2 Polished Windows. Material: Quartz, 200 – 2,500 nm Spectral Range. Chamber Volume 200 μL, Detection Method: Photometric, UV / Vis Spectroscopy |
| QGM220-06 | 50uL-15mm-New | New 50 μL Black Cuvette, Z dim: 15 mm. Lid Included. Bonded / Glued, for Aqueous Samples Only. H x W x D: 45 x 12.5 x 12.5 mm, Pathlength: 10 mm, Aperture: 2 x 2.5 mm, 2 Polished Windows. Material: Quartz, 200 – 2,500 nm Spectral Range. Chamber Volume 50 μL, Detection Method: Photometric, UV / Vis Spectroscopy |
| QGM220-07 | 100uL-15mm-New | New 100 μL Black Cuvette, Z dim: 15 mm. Lid Included. Bonded / Glued, for Aqueous Samples Only. H x W x D: 45 x 12.5 x 12.5 mm, Pathlength: 10 mm, Aperture: 2 x 5 mm, 2 Polished Windows. Material: Quartz, 200 – 2,500 nm Spectral Range. Chamber Volume 100 μL, Detection Method: Photometric, UV / Vis Spectroscopy |
| QGM220-08 | 200uL-15mm-New | New 200 μL Black Cuvette, Z dim: 15 mm. Lid Included. Bonded / Glued, for Aqueous Samples Only. H x W x D: 45 x 12.5 x 12.5 mm, Pathlength: 10 mm, Aperture: 2 x 10 mm, 2 Polished Windows. Material: Quartz, 200 – 2,500 nm Spectral Range. Chamber Volume 200 μL, Detection Method: Photometric, UV / Vis Spectroscopy |
| QGM220-09 | 300uL-15mm-New | New 300 μL Black Cuvette, Z dim: 15 mm. Lid Included. Bonded / Glued, for Aqueous Samples Only. H x W x D: 45 x 12.5 x 12.5 mm, Pathlength: 10 mm, Aperture: 2 x 15 mm, 2 Polished Windows. Material: Quartz, 200 – 2,500 nm Spectral Range. Chamber Volume 300 μL, Detection Method: Photometric, UV / Vis Spectroscopy |
| QGM220-10 | 50uL-8.5mm-All-Black | 50 μL All Black Cuvette, Z dim: 8.5 mm. Lid Included. Bonded / Glued, for Aqueous Samples Only. H x W x D: 45 x 12.5 x 12.5 mm, Pathlength: 10 mm, Aperture: 2 x 2.5 mm, 2 Polished Windows. Material: Quartz, 200 – 2,500 nm Spectral Range. Chamber Volume 50 μL, Detection Method: Photometric, UV / Vis Spectroscopy |
| QGM220-11 | 50uL-15mm-All-Black | 50 μL All Black Cuvette, Z dim: 15 mm. Lid Included. Bonded / Glued, for Aqueous Samples Only. H x W x D: 45 x 12.5 x 12.5 mm, Pathlength: 10 mm, Aperture: 2 x 2.5 mm, 2 Polished Windows. Material: Quartz, 200 – 2,500 nm Spectral Range. Chamber Volume 50 μL, Detection Method: Photometric, UV / Vis Spectroscopy |
| QGM220-12 | 50uL-20mm-All-Black | 50 μL All Black Cuvette, Z dim: 20 mm. Lid Included. Bonded / Glued, for Aqueous Samples Only. H x W x D: 45 x 12.5 x 12.5 mm, Pathlength: 10 mm, Aperture: 2 x 2.5 mm, 2 Polished Windows. Material: Quartz, 200 – 2,500 nm Spectral Range. Chamber Volume 50 μL, Detection Method: Photometric, UV / Vis Spectroscopy |
| QGM220-13 | 100uL-8.5mm-All-Black | 100 μL All Black Cuvette, Z dim: 8.5 mm. Lid Included. Bonded / Glued, for Aqueous Samples Only. H x W x D: 45 x 12.5 x 12.5 mm, Pathlength: 10 mm, Aperture: 2 x 5 mm, 2 Polished Windows. Material: Quartz, 200 – 2,500 nm Spectral Range. Chamber Volume 100 μL, Detection Method: Photometric, UV / Vis Spectroscopy |
| QGM220-14 | 100uL-15mm-All-Black | 100 μL All Black Cuvette, Z dim: 15 mm. Lid Included. Bonded / Glued, for Aqueous Samples Only. H x W x D: 45 x 12.5 x 12.5 mm, Pathlength: 10 mm, Aperture: 2 x 5 mm, 2 Polished Windows. Material: Quartz, 200 – 2,500 nm Spectral Range. Chamber Volume 100 μL, Detection Method: Photometric, UV / Vis Spectroscopy |
| QGM220-15 | 100uL-20mm-All-Black | 100 μL All Black Cuvette, Z dim: 20 mm. Lid Included. Bonded / Glued, for Aqueous Samples Only. H x W x D: 45 x 12.5 x 12.5 mm, Pathlength: 10 mm, Aperture: 2 x 5 mm, 2 Polished Windows. Material: Quartz, 200 – 2,500 nm Spectral Range. Chamber Volume 100 μL, Detection Method: Photometric, UV / Vis Spectroscopy |
