20 – 50 mm Large Quartz Square Cells, 2 Windows, QGC230

20 – 50 mm Large Quartz Square Cells, 2 Windows, QGC230

Introducing the QGC230, a series of large quartz square cells designed for precise and accurate sample analysis in a wide range of scientific applications. These cuvettes are meticulously crafted with high-quality materials and offer various options to customize your experimental setup. With their exceptional features and reliable performance, the QGC230 cuvettes are the perfect choice for researchers and scientists in need of accurate measurements.

Key Features:

• Large Square Design: The cuvettes feature a spacious square design, allowing for a larger sample volume and increased ease of handling during measurements.
• Superior Material Quality: Crafted from high-quality quartz, these cuvettes offer excellent optical properties, including high transparency and resistance to most chemicals, ensuring accurate and reliable measurements.
• Two Polished Windows: Each cuvette is equipped with two polished windows, providing optimal light transmission and minimizing stray light interference for precise measurements.

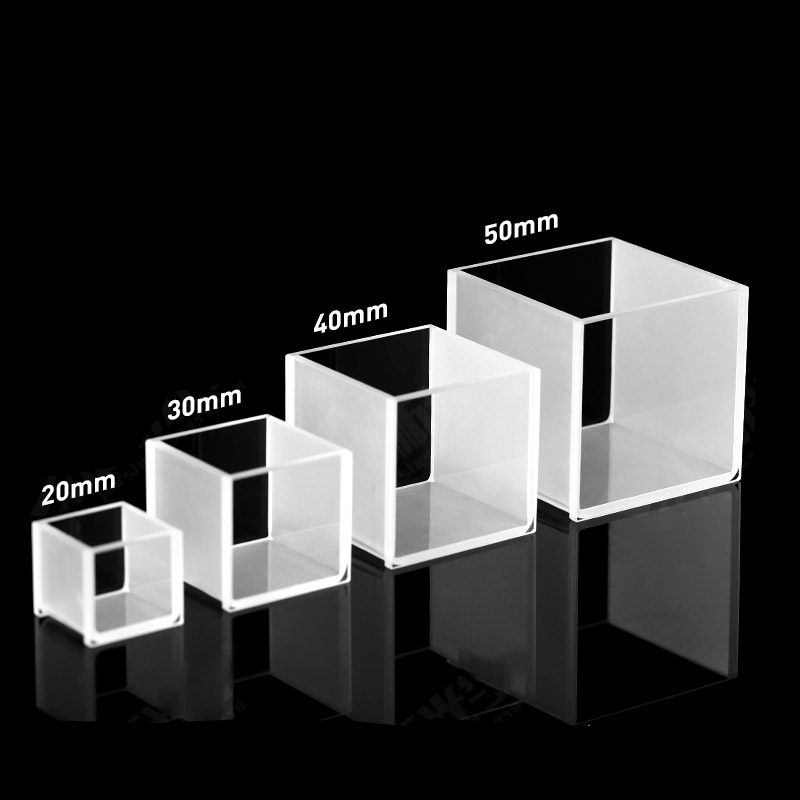

• Wide Range of Pathlengths: The cuvettes are available in various pathlengths, including 20 mm, 30 mm, 40 mm, and 50 mm, allowing flexibility in analyzing samples with different absorbance levels.
• Generous Chamber Volume: The cuvettes have chamber volumes ranging from 8,000 μL to 125,000 μL, accommodating a sufficient amount of sample for comprehensive analysis.
• Photometric Detection Method: The cuvettes are designed for photometric measurements, enabling researchers to accurately determine the concentration or absorbance of target substances in their samples.

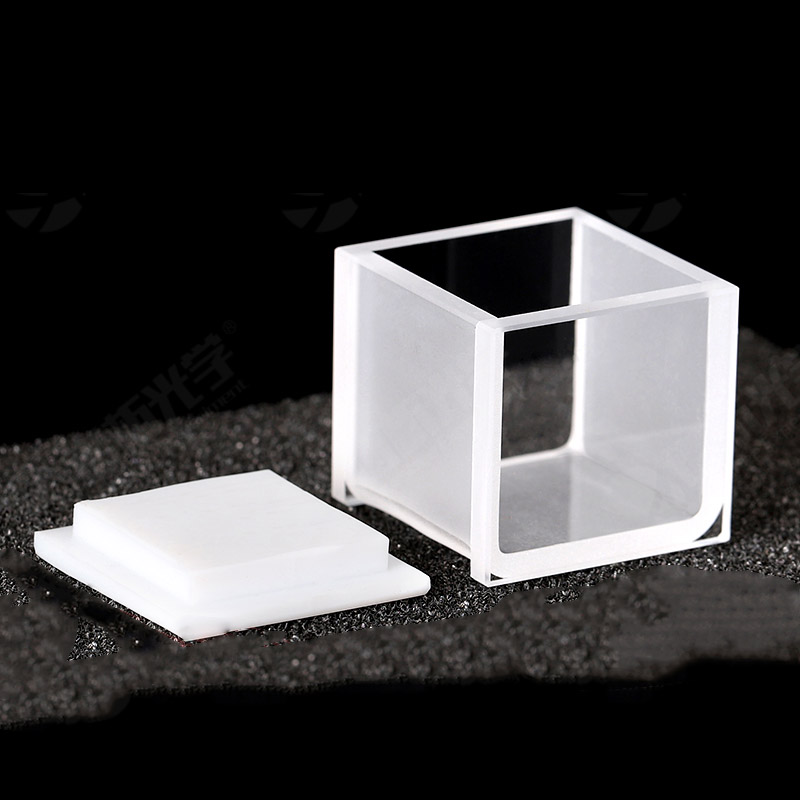

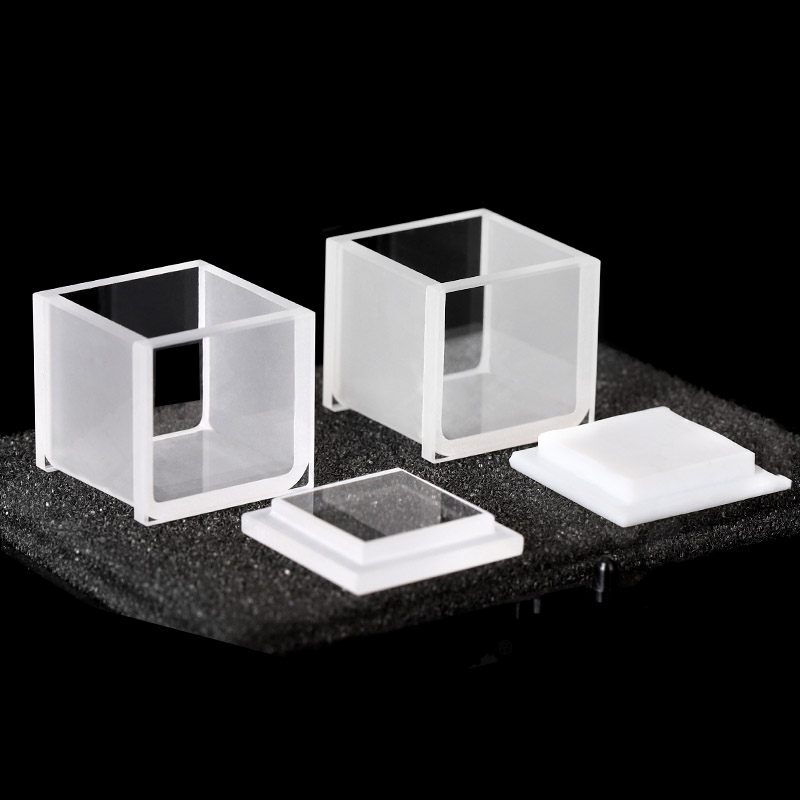

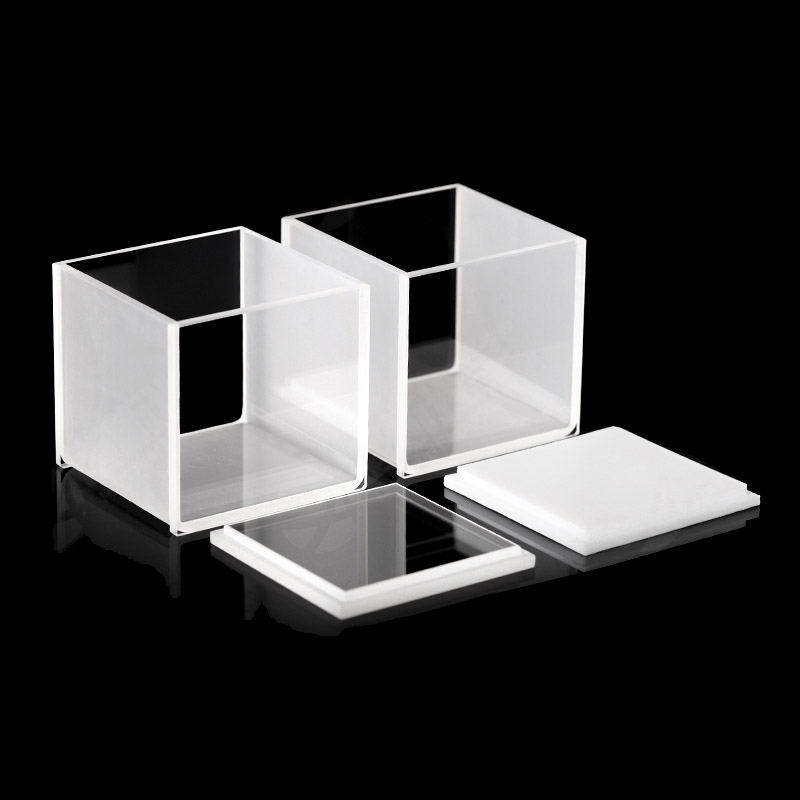

• Optional Lid Types: Choose from quartz lids or PTFE lids to suit your specific experimental needs, ensuring sample containment and minimizing evaporation or contamination during measurements.

Option Specifications:

1. 20mm-2-Windows-Fused-No-Lid
   • Pathlength: 20 mm
   • Volume: 8 mL
   • Lid: No Lid
   • Material: Fused Quartz
   • Chamber Volume: 8,000 μL
2. 30mm-2-Windows-Fused-No-Lid
   • Pathlength: 30 mm
   • Volume: 27 mL
   • Lid: No Lid
   • Material: Fused Quartz
   • Chamber Volume: 27,000 μL
3. 40mm-2-Windows-Fused-No-Lid
   • Pathlength: 40 mm
   • Volume: 64 mL
   • Lid: No Lid
   • Material: Fused Quartz
   • Chamber Volume: 64,000 μL
4. 50mm-2-Windows-Fused-No-Lid
   • Pathlength: 50 mm
   • Volume: 125 mL
   • Lid: No Lid
   • Material: Fused Quartz
   • Chamber Volume: 125,000 μL
5. 80mm-1-Windows-Fused-No-Lid
   • Pathlength: 74 mm
   • Volume: 420 mL
   • Lid: No Lid
   • Material: Quartz
   • Chamber Volume: 420,000 μL
6. Quartz-Lid-20mm
   • Lid Type: Quartz Lid
   • Compatible with: 20mm Large Cell
7. Quartz-Lid-30mm
   • Lid Type: Quartz Lid
   • Compatible with: 30mm Large Cell
8. Quartz-Lid-40mm
   • Lid Type: Quartz Lid
   • Compatible with: 40mm Large Cell
9. Quartz-Lid-50mm
   • Lid Type: Quartz Lid
   • Compatible with: 50mm Large Cell
10. PTFE-Lid-20mm
    • Lid Type: PTFE Lid
    • Compatible with: 20mm Large Cell
11. PTFE-Lid-30mm
    • Lid Type: PTFE Lid
    • Compatible with: 30mm Large Cell
12. PTFE-Lid-40mm
    • Lid Type: PTFE Lid
    • Compatible with: 40mm Large Cell
13. PTFE-Lid-50mm
    • Lid Type: PTFE Lid
    • Compatible with: 50mm Large Cell

Customization: We understand the importance of customization in meeting your specific research requirements. Our cuvettes can be further customized to accommodate different pathlengths, chamber volumes, and lid types. Whether you need a specialized cuvette for a specific application or want to modify certain specifications, our dedicated team is here to assist you. Contact us to discuss your customization needs and explore the possibilities.

Enhance your sample analysis with the QGC230 series of large quartz square cells. With their versatility, superior quality, and customizable options, these cuvettes provide a reliable platform for accurate measurements in a wide range of scientific disciplines. Order now and experience the exceptional performance that these cuvettes bring to your research endeavors.

Note: The specifications mentioned above are subject to customization and may vary based on your specific requirements.

0	1
Our Fabrication Types Most types of Aireka Scientific quartz cuvettes including customized cells are available with the following 3 types of fabrication standards:

0	1	2	3
	*Molded	*Fused	*Bonded / Glued
UV vis ( 190- 2500 nm)	Yes	Yes	Yes
Transmission Matched	Yes	Yes	Yes
Transmission > 80%	Yes	Yes	Yes
Resistant to Acids and Bases (except hydrofluoric acid)	Yes	Yes	No
Resistant to Organic Solvents	Yes	Yes	No
Usable upto 500°C (932°F)	Yes	Yes	No
Usable upto 1200°C (2192°F)	Yes	No	No
0 Variations Reading	On Request	No	No
Fabrication	Molded	Assembled with Quartz Powder	Assembled with Glue
Adhesives	No	No	Yes
Storage	Short Term Storage	Clean After Use	Clean After Use
Available Material	ES Quartz Material
Note	Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm.

0
UV Quartz Glass Cuvettes Most of our quartz cuvettes are made from ES quartz material, absorption onset occurs below 190 nm and there are no absorption bands situated between 190 nm and 250 nm. Exceptionally high transmittance across the UVB, UVA, visible spectrum, and near IR. The transmission spectra for our UV quartz cells can be seen below. When working in the IR spectra, especially for wavelengths greater than 2000 nm, we recommend IR Quartz Glass Cuvettes instead, as they offer high transmission for these wavelengths.
IR Quartz Glass Cuvettes Made from IR quartz material, absorption onset occurs below 260 nm with exceptionally high transmission across UVB, UVA, visible, near IR, and notably short IR. Transmission drops significantly in the mid-IR, and at 4200 nm there is complete absorption.
Why Aireka Scientific Cuvettes and Cells? Aireka Scientific Co Limited is world-renowned as the producer of premium quartz cuvettes. Over twenty years of experience manufacturing quartz cuvettes ensures that every cuvette is manufactured to the most exacting standards for reproducible results.
Spectrophotometry cuvettes - Most spectrophotometry applications in the visible and UV ranges benefit from Aireka Scientific spectrophotometry cuvettes. Our cuvettes made of ES quartz material deliver precise and reliable readings even at wavelengths as low as 190 nm. The stock cuvettes are compatible with most spectrophotometers and photometers with standard 0.2 - 100 mm path lengths. Fluorimetry cuvettes - Aireka Scientific brings two decades of experience molding high-quality fluorescence cuvettes to new four-sided clear cuvettes for fluorimetry. Available in standard quartz material with ultra-low auto-fluorescence for the highest precision measurements. Protective packaging - Our cuvettes are in dust-free, low scratching-expanded polystyrene packaging. This ensures that premium cuvettes arrive in the laboratory in the same pristine condition they were in at the factory, with optical quality windows and free of contaminants.  Volumes for most purposes - Our cuvettes are available in a variety of ranges from micro to macro semi-micro sizes to respond to the needs of most scientific applications. We can also customize sample volume to deliver consistent, accurate findings. Perform consistently - The Cuvettes are constructed from high-quality fused quartz materials and are grouped by manufacturing mold cavities to ensure the lowest fluctuation in extinction coefficient. Customization - Custom cuvettes and cells are encouraged and available upon request; mechanical drawings with specifications and tolerances are prerequisites. Awesome pricing and flexibility on small quantities.
