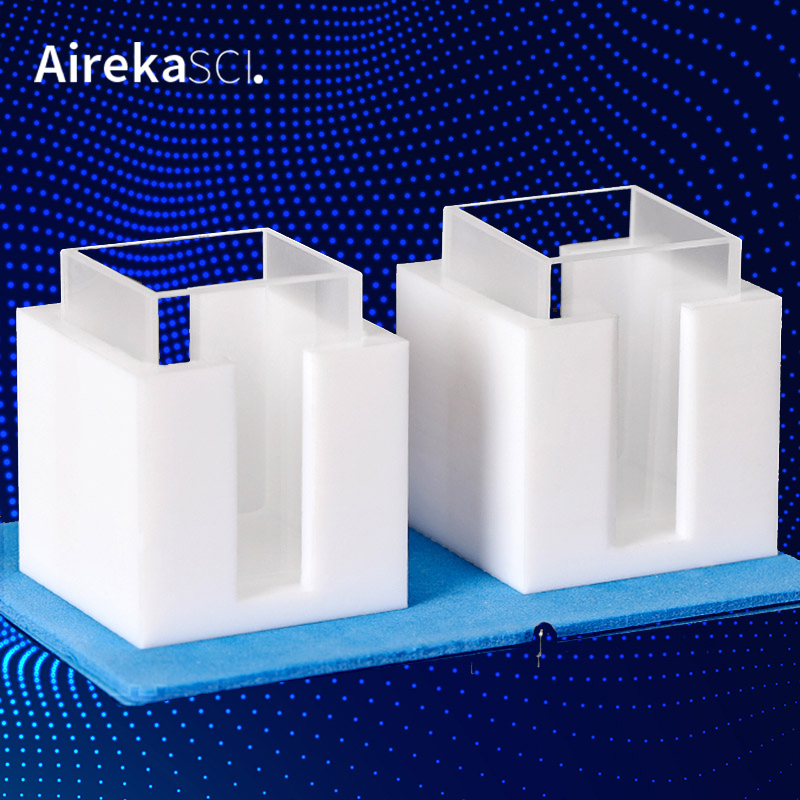

25 mm Custom Cuvette with PTFE Holder, QGCP01

25 mm Custom Cuvette with PTFE Holder, QGCP01

The 25 mm Custom Cuvette with PTFE Holder, QGCP01, is a versatile and high-quality cuvette designed for various applications in the fields of biochemistry, molecular biology, analytical chemistry, environmental science, and pharmaceutical research. With its customizable features and exceptional performance, it is an essential tool for precise and reliable sample analysis.

Key Features:

• Volume: The cuvette has a generous chamber volume of 22 mL, allowing for ample sample volume.
• Path length: The path length of the cuvette is 25 mm, ensuring accurate measurement of light absorbance or fluorescence intensity.
• Size: The dimensions of the cuvette are H x W x D: 38 x 28 x 28 mm, providing a compact and convenient size for handling and storage.
• Material: Constructed with high-quality quartz material, the cuvette offers excellent optical transparency and is resistant to most chemicals.
• Fabrication Type: The cuvette is fused, ensuring durability and long-lasting performance.
• Number of Windows: It features two polished windows, providing optimal optical clarity and minimizing interference.
• Spectral Range: With a spectral range of 200 – 2,500 nm, the cuvette accommodates a wide range of wavelengths for versatile spectroscopic analysis.
• PTFE Holder: The cuvette is equipped with a PTFE holder, offering secure placement and stability during measurements.

Options:

1. 25mm-Cuvette-Only: This option includes a 22 mL custom cuvette without a holder. It is fused, resistant to most chemicals, and provides precise sample analysis. Dimensions: H x W x D: 38 x 28 x 28 mm, Pathlength: 25 mm, Material: Quartz, Number of Windows: 2.

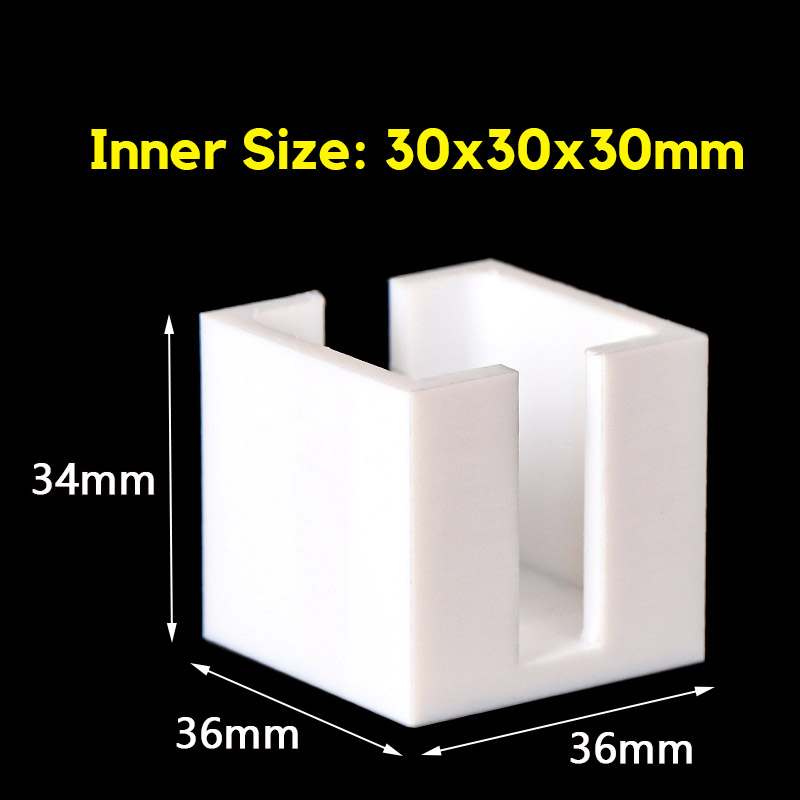

2. 36mm-Holder: This option is a PTFE holder specifically designed for the QGCP01-01 cuvette. It provides a secure and stable platform for holding the cuvette during measurements. Dimensions: H x W x D: 34 x 36 x 36 mm.

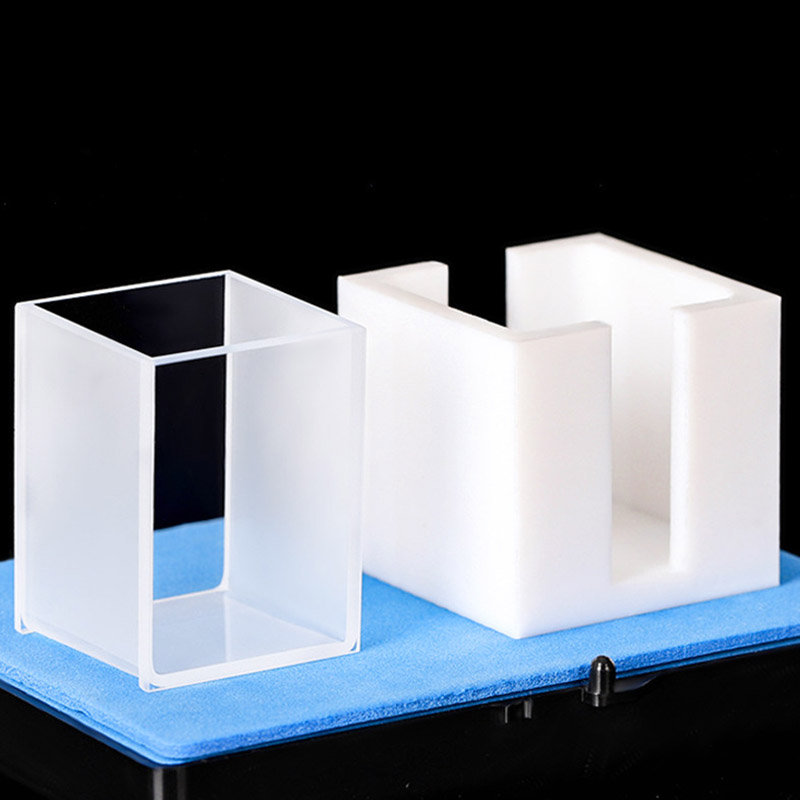

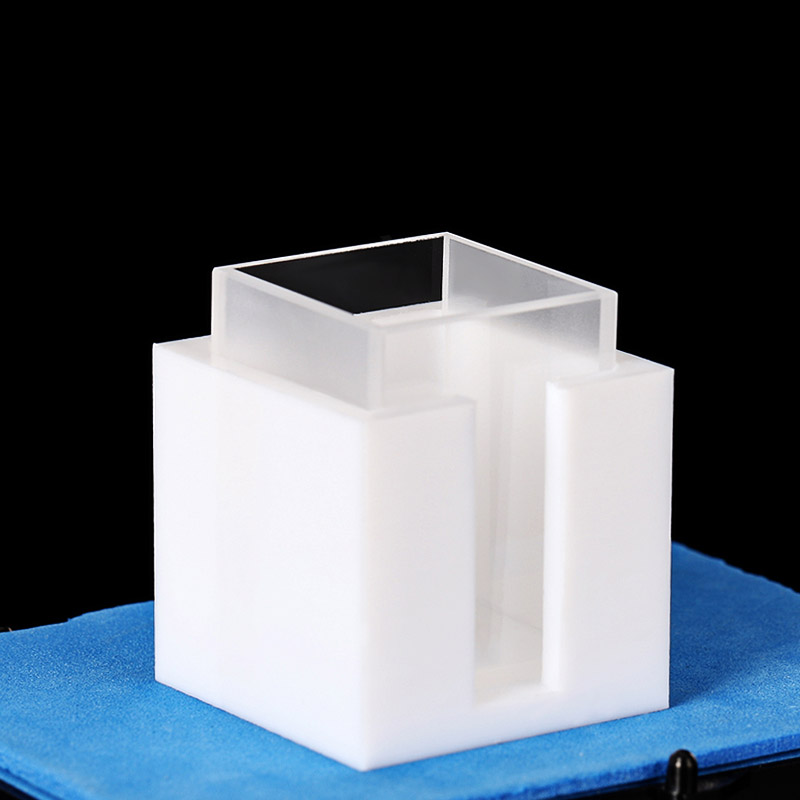

3. 25mm-Cuvette-with-Holder: This option includes both the 25 mm custom cuvette (QGCP01-01) and a matching 36 mm PTFE holder (QGCP01-02). It offers a complete set for convenient sample analysis. Dimensions: Holder – H x W x D: 34 x 36 x 36 mm, Cuvette – H x W x D: 38 x 28 x 28 mm, Pathlength: 25 mm, Material: Quartz, Number of Windows: 2.

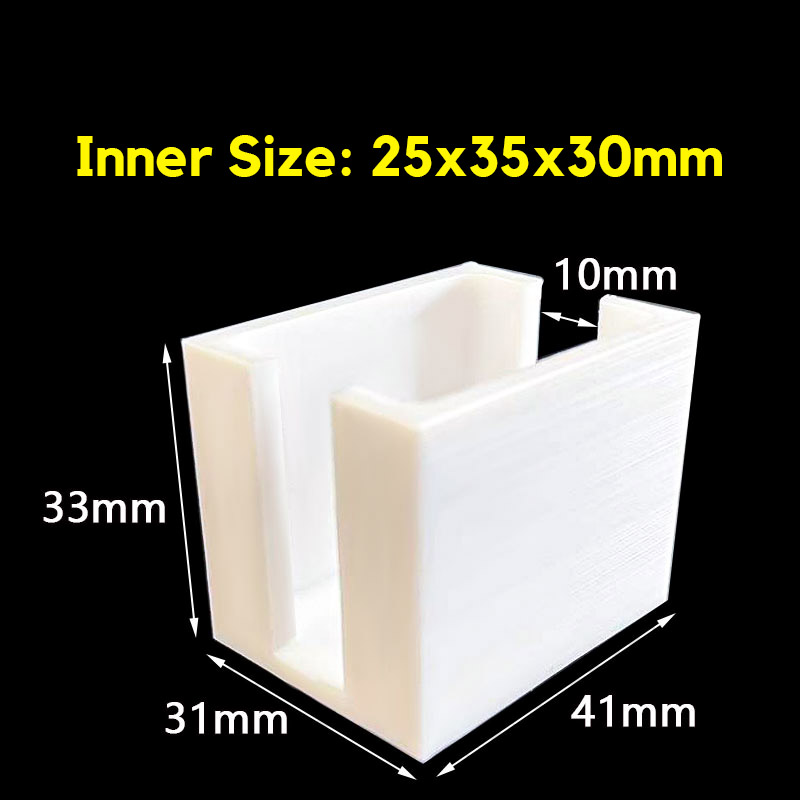

4. 31mm-Holder: This option features a standalone PTFE holder (QGCP01-04) with dimensions of H x W x D: 33 x 31 x 41 mm. It is designed for general use and can accommodate various cuvette sizes.

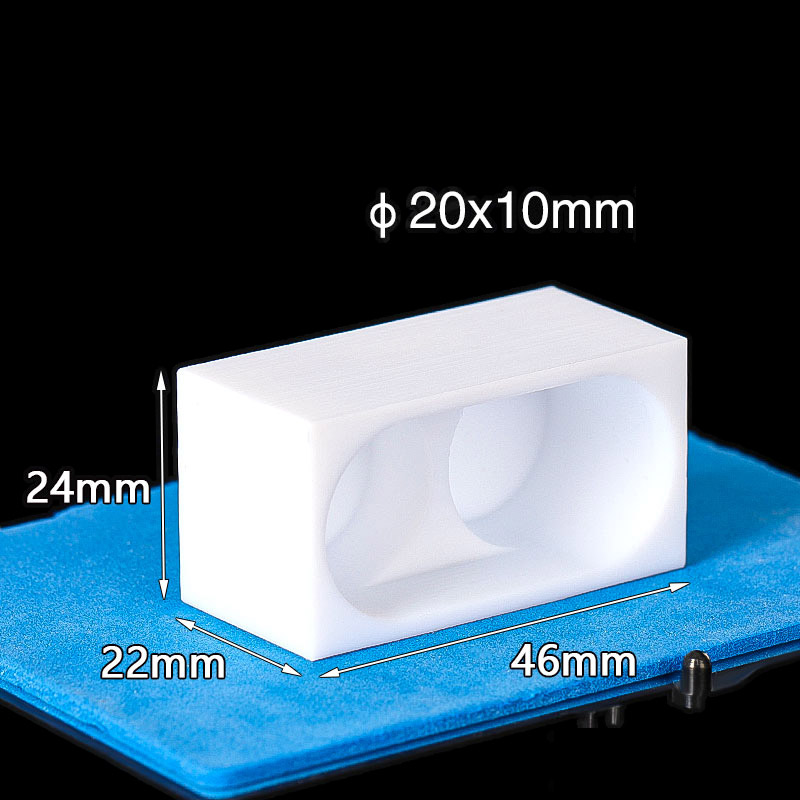

5. 24mm-Holder: This option includes a PTFE holder (QGCP01-05) with dimensions of H x W x D: 22 x 24 x 46 mm. It is suitable for holding cuvettes of different specifications.

Customization: We understand that every customer may have unique requirements for their experiments and measurements. Therefore, we offer customization services to meet your specific needs. Whether it’s adjusting the cuvette volume, path length, or other specifications, our team is dedicated to providing tailored solutions. Please contact our customer support to discuss your customization requirements.

The 25 mm Custom Cuvette with PTFE Holder, QGCP01, combines exceptional performance, durability, and versatility, making it an ideal choice for scientists and researchers in various scientific disciplines. Enhance your laboratory experiments and achieve accurate and reliable results with this premium cuvette and its customizable options.

0	1
Our Fabrication Types Most types of Aireka Scientific quartz cuvettes including customized cells are available with the following 3 types of fabrication standards:

0	1	2	3
	*Molded	*Fused	*Bonded / Glued
UV vis ( 190- 2500 nm)	Yes	Yes	Yes
Transmission Matched	Yes	Yes	Yes
Transmission > 80%	Yes	Yes	Yes
Resistant to Acids and Bases (except hydrofluoric acid)	Yes	Yes	No
Resistant to Organic Solvents	Yes	Yes	No
Usable upto 500°C (932°F)	Yes	Yes	No
Usable upto 1200°C (2192°F)	Yes	No	No
0 Variations Reading	On Request	No	No
Fabrication	Molded	Assembled with Quartz Powder	Assembled with Glue
Adhesives	No	No	Yes
Storage	Short Term Storage	Clean After Use	Clean After Use
Available Material	ES Quartz Material
Note	Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm.

0
UV Quartz Glass Cuvettes Most of our quartz cuvettes are made from ES quartz material, absorption onset occurs below 190 nm and there are no absorption bands situated between 190 nm and 250 nm. Exceptionally high transmittance across the UVB, UVA, visible spectrum, and near IR. The transmission spectra for our UV quartz cells can be seen below. When working in the IR spectra, especially for wavelengths greater than 2000 nm, we recommend IR Quartz Glass Cuvettes instead, as they offer high transmission for these wavelengths.
IR Quartz Glass Cuvettes Made from IR quartz material, absorption onset occurs below 260 nm with exceptionally high transmission across UVB, UVA, visible, near IR, and notably short IR. Transmission drops significantly in the mid-IR, and at 4200 nm there is complete absorption.
Why Aireka Scientific Cuvettes and Cells? Aireka Scientific Co Limited is world-renowned as the producer of premium quartz cuvettes. Over twenty years of experience manufacturing quartz cuvettes ensures that every cuvette is manufactured to the most exacting standards for reproducible results.
Spectrophotometry cuvettes - Most spectrophotometry applications in the visible and UV ranges benefit from Aireka Scientific spectrophotometry cuvettes. Our cuvettes made of ES quartz material deliver precise and reliable readings even at wavelengths as low as 190 nm. The stock cuvettes are compatible with most spectrophotometers and photometers with standard 0.2 - 100 mm path lengths. Fluorimetry cuvettes - Aireka Scientific brings two decades of experience molding high-quality fluorescence cuvettes to new four-sided clear cuvettes for fluorimetry. Available in standard quartz material with ultra-low auto-fluorescence for the highest precision measurements. Protective packaging - Our cuvettes are in dust-free, low scratching-expanded polystyrene packaging. This ensures that premium cuvettes arrive in the laboratory in the same pristine condition they were in at the factory, with optical quality windows and free of contaminants.  Volumes for most purposes - Our cuvettes are available in a variety of ranges from micro to macro semi-micro sizes to respond to the needs of most scientific applications. We can also customize sample volume to deliver consistent, accurate findings. Perform consistently - The Cuvettes are constructed from high-quality fused quartz materials and are grouped by manufacturing mold cavities to ensure the lowest fluctuation in extinction coefficient. Customization - Custom cuvettes and cells are encouraged and available upon request; mechanical drawings with specifications and tolerances are prerequisites. Awesome pricing and flexibility on small quantities.
