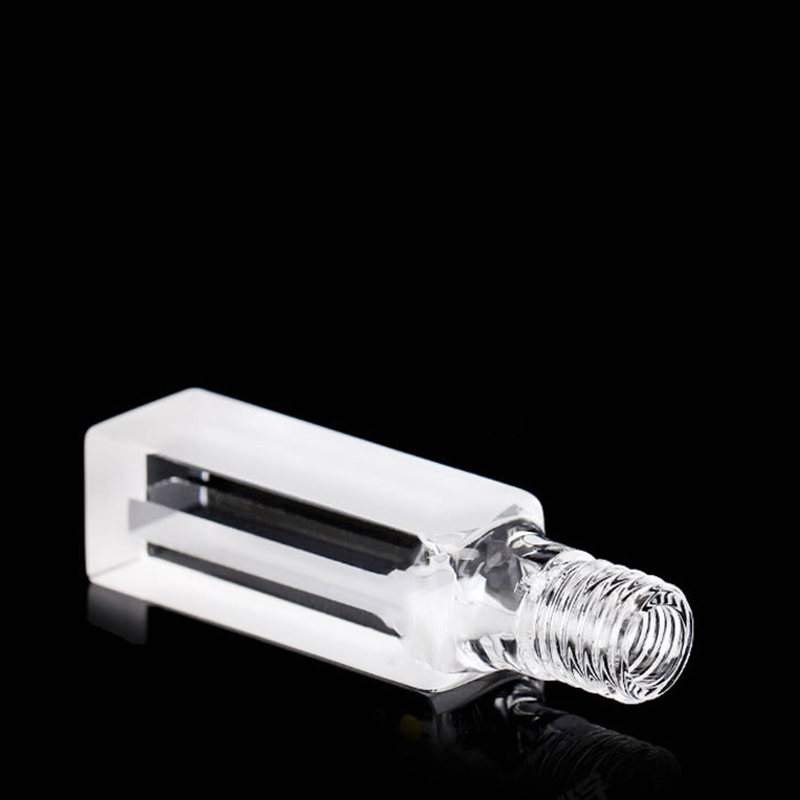

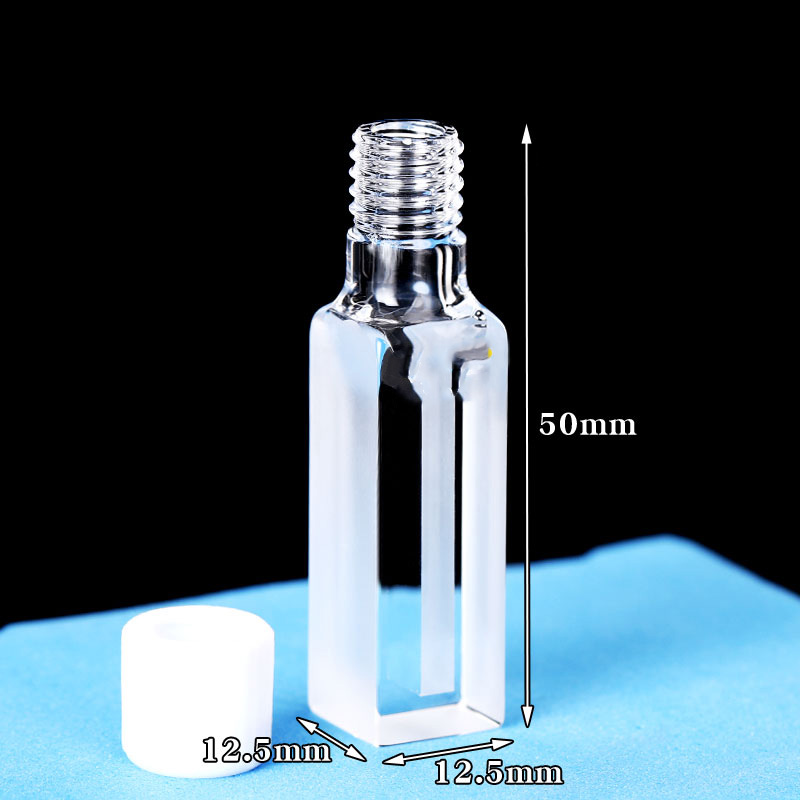

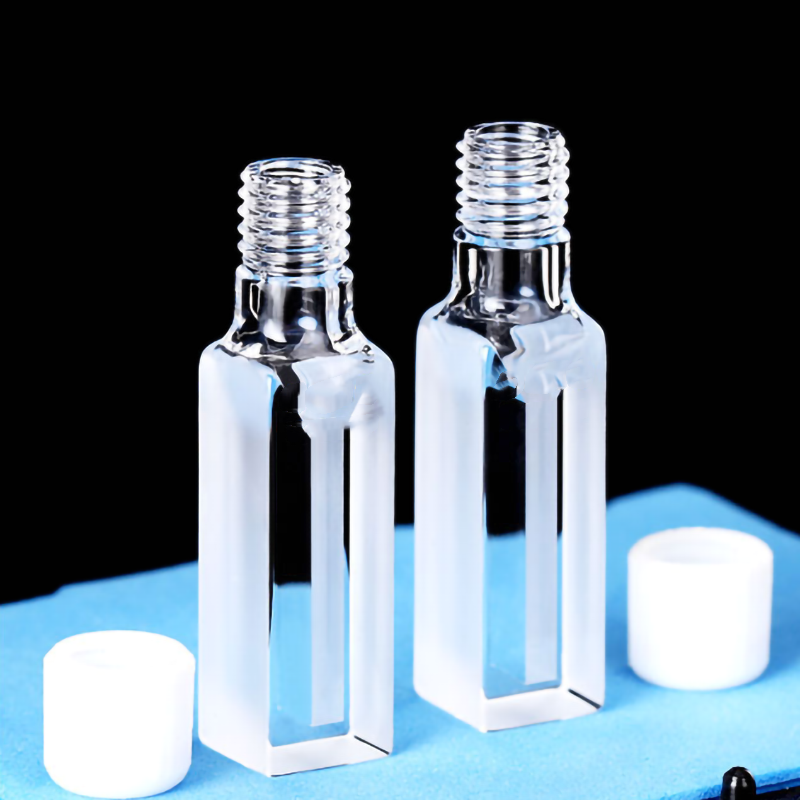

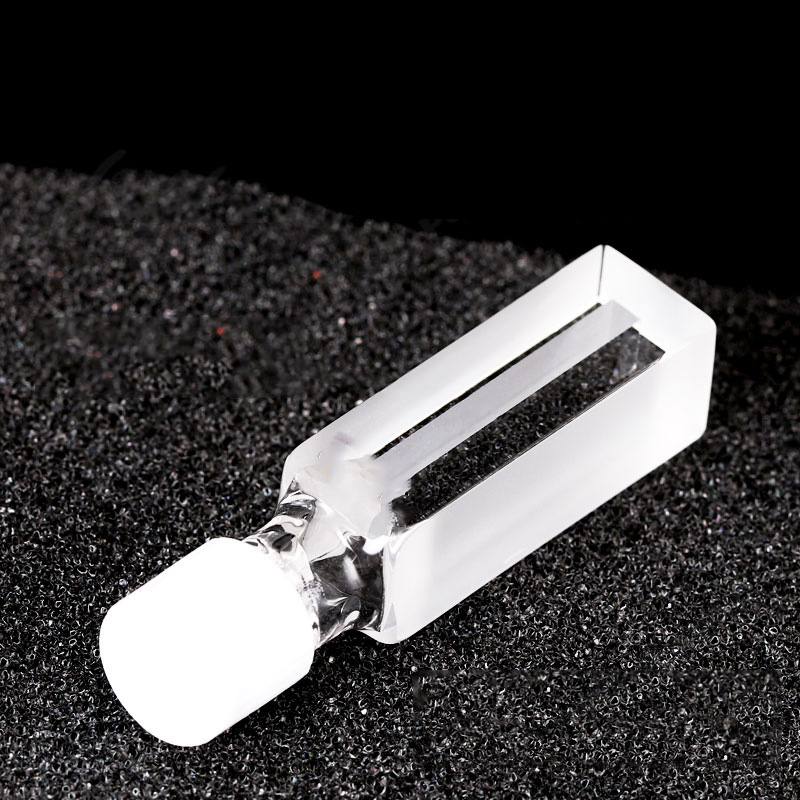

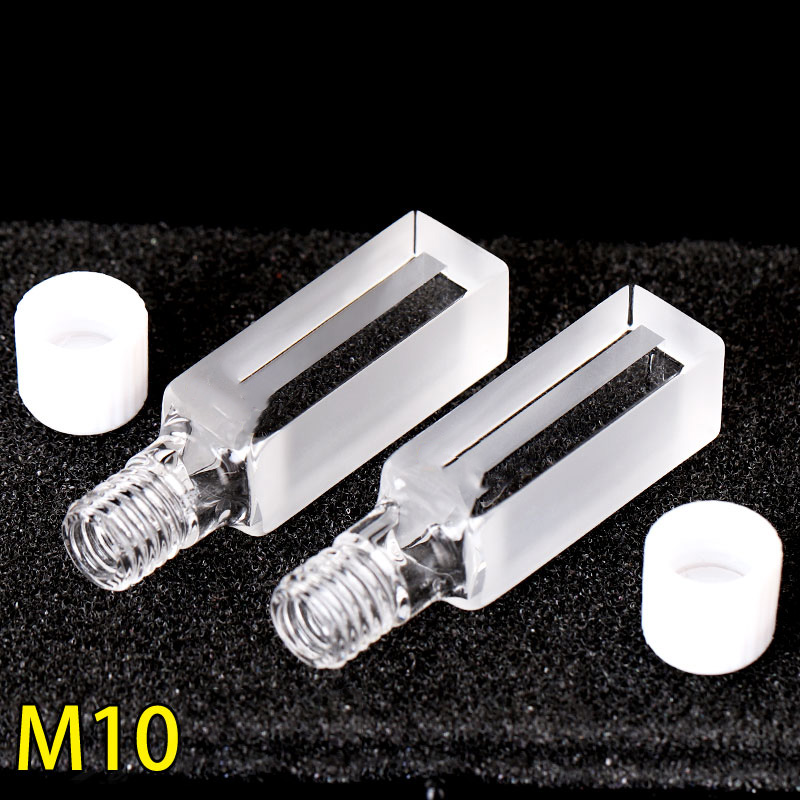

3 mm Semi Micro Cuvette with Screw Cap, 2 Windows, QGS10E

The QGS10E 3mm Semi Micro Cuvette with Screw Cap is ideal for spectrophotometric applications requiring precision measurements and durability. This cuvette features two polished windows, a PTFE screw cap, external thread, molded construction, and is made from high-quality quartz material to ensure accuracy.

The chamber volume of this cuvette is 1,050 μL, making it perfect for larger samples. With a spectral range that goes from 200 – 2,500 nm, it’s perfect for detection methods such as photometric. This durable product can withstand organic and corrosive chemicals

Why narrow-width cuvettes?

Narrow-width cuvettes, due to their slender dimensions, permit reduced sample volumes, such as in microspectrophotometry, where precision measurements of small samples are necessary. Additionally, the reduced optical path length of narrow cuvettes renders them ideal for assays with limited sample volumes, where maximizing light transmission is important for sensitivity considerations. Therefore, narrow cuvettes deliver superior performance in specialized sample applications with the following advantages:

1. Reduced sample volume: Narrow-width cuvettes require smaller sample volumes compared to standard-width cuvettes. This can be beneficial when working with limited or precious samples, minimizing the amount of samples required for analysis.
2. Cost-effectiveness: With their smaller dimensions, narrow-width cuvettes can be a cost-effective option, as they require less material for manufacturing. This can be advantageous when working with large sample sets or conducting high-throughput experiments.
3. Enhanced optical pathlength: The narrower width of these cuvettes allows for longer optical pathlengths, enabling increased sensitivity and improved detection limits. This is particularly useful in applications where the analyte concentration is low or when precise measurements are required.
4. Compatibility with specific instruments: Some spectrophotometers or analytical instruments may have limitations on the cuvette width they can accommodate. Narrow-width cuvettes are designed to fit these instruments, ensuring seamless compatibility and optimal performance.
5. Reduced reagent consumption: Narrow-width cuvettes require smaller volumes of reagents, reducing reagent consumption and cost. This is advantageous when working with expensive or limited quantities of reagents.
6. Space-saving: The smaller size of narrow-width cuvettes allows for efficient use of laboratory space, especially when multiple cuvettes need to be accommodated in a limited area.
7. Specialized applications: Narrow-width cuvettes are often preferred in specific applications such as microfluidics, capillary electrophoresis, or certain flow-based analyses. These cuvettes enable precise control over sample flow and interaction, facilitating specialized experimental setups.

When selecting narrow-width cuvettes, it is necessary to consider a range of factors to ensure that the choice meets the specific requirements of the application. One of the most important considerations is sample volume. If the sample is only available in small quantities, a narrow-width cuvette might be the best choice. Another key consideration is sensitivity. If the analytical requirements for the application demand high sensitivity, a narrow-width cuvette should be considered.

Compatibility with instruments is also crucial to the selection process. Some spectrophotometers are only compatible with certain types of cuvettes due to specific size constraints. In that case, it could be that narrow-width cuvettes are the only option.

Finally, cost is another important consideration when selecting narrow-width cuvettes. It is important to strike a balance between the practical requirements of the analysis and the cost of the cuvettes, while ensuring you have made the right choice to suit your analytical needs.

0	1
Our Fabrication Types Most types of Aireka Scientific quartz cuvettes including customized cells are available with the following 3 types of fabrication standards:

0	1	2	3
	*Molded	*Fused	*Bonded / Glued
UV vis ( 190- 2500 nm)	Yes	Yes	Yes
Transmission Matched	Yes	Yes	Yes
Transmission > 80%	Yes	Yes	Yes
Resistant to Acids and Bases (except hydrofluoric acid)	Yes	Yes	No
Resistant to Organic Solvents	Yes	Yes	No
Usable upto 500°C (932°F)	Yes	Yes	No
Usable upto 1200°C (2192°F)	Yes	No	No
0 Variations Reading	On Request	No	No
Fabrication	Molded	Assembled with Quartz Powder	Assembled with Glue
Adhesives	No	No	Yes
Storage	Short Term Storage	Clean After Use	Clean After Use
Available Material	ES Quartz Material
Note	Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm.

0
UV Quartz Glass Cuvettes Most of our quartz cuvettes are made from ES quartz material, absorption onset occurs below 190 nm and there are no absorption bands situated between 190 nm and 250 nm. Exceptionally high transmittance across the UVB, UVA, visible spectrum, and near IR. The transmission spectra for our UV quartz cells can be seen below. When working in the IR spectra, especially for wavelengths greater than 2000 nm, we recommend IR Quartz Glass Cuvettes instead, as they offer high transmission for these wavelengths.
IR Quartz Glass Cuvettes Made from IR quartz material, absorption onset occurs below 260 nm with exceptionally high transmission across UVB, UVA, visible, near IR, and notably short IR. Transmission drops significantly in the mid-IR, and at 4200 nm there is complete absorption.
Why Aireka Scientific Cuvettes and Cells? Aireka Scientific Co Limited is world-renowned as the producer of premium quartz cuvettes. Over twenty years of experience manufacturing quartz cuvettes ensures that every cuvette is manufactured to the most exacting standards for reproducible results.
Spectrophotometry cuvettes - Most spectrophotometry applications in the visible and UV ranges benefit from Aireka Scientific spectrophotometry cuvettes. Our cuvettes made of ES quartz material deliver precise and reliable readings even at wavelengths as low as 190 nm. The stock cuvettes are compatible with most spectrophotometers and photometers with standard 0.2 - 100 mm path lengths. Fluorimetry cuvettes - Aireka Scientific brings two decades of experience molding high-quality fluorescence cuvettes to new four-sided clear cuvettes for fluorimetry. Available in standard quartz material with ultra-low auto-fluorescence for the highest precision measurements. Protective packaging - Our cuvettes are in dust-free, low scratching-expanded polystyrene packaging. This ensures that premium cuvettes arrive in the laboratory in the same pristine condition they were in at the factory, with optical quality windows and free of contaminants.  Volumes for most purposes - Our cuvettes are available in a variety of ranges from micro to macro semi-micro sizes to respond to the needs of most scientific applications. We can also customize sample volume to deliver consistent, accurate findings. Perform consistently - The Cuvettes are constructed from high-quality fused quartz materials and are grouped by manufacturing mold cavities to ensure the lowest fluctuation in extinction coefficient. Customization - Custom cuvettes and cells are encouraged and available upon request; mechanical drawings with specifications and tolerances are prerequisites. Awesome pricing and flexibility on small quantities.
