ASPM200C-Modular Precision Syringe Pump

Availability:

100 in stock
Add to wishlist
Compare

$2,160.00 $2,280.00

100 in stock

A minimum of 1 units is required to checkout. Worldwide shipping.

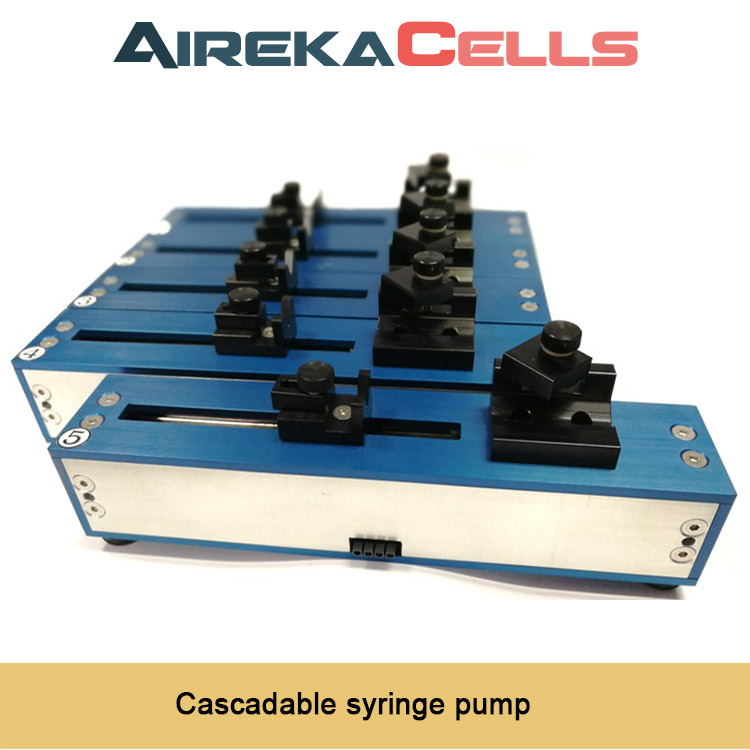

Precision Syringe Pump SPM200C

Figure 1

Modular precision syringe pump perfect for liquid delivery operations. Features include:

SPM200C syringe pump
  • Scalable design with cascadable pump modules
  • High precision flow control in micron-step resolution
  • Wide flow rate range with bi-direction flow control
  • Microscope stage adaptable
  • Small and flexible footprint

AirekaCells Bi-direction Syringe Pump (PN: SPM200C) is a cascadable syringe pump module which provides a cost effective OEM solution for liquid pumping system integration and instrumentation.

It is a precision liquid delivery module which can supports syringe size up to 60ml with both infusion and withdrawal operations.

The SPM200C can be operated from one pump module standalone up to 8 cascaded pump modules with graphical user interface (GUI) computer software.

ASPM100 Software Interface

Software Interface

It features exhibits superior performance in fluidic flow control with an accuracy of ±0.5%, step resolution of 0.015 micron and maximum linear force of 100lbs.

The assemblies are shown in figure 1. The applications include:

  • Liquid pumping system integration
  • Precision liquid delivery with both infusion and withdrawal operations
  • Standalone operation or upto 10 cascade modular operation with independent flow control

How to order your pump?

Step1: Choose the model of the syringe pumps

Model ASPM100 ASPM200C
Flow Rate 0.10 µl/hr ~ 6000 ml/hr 2.0 nl/hr ~ 200 ml/hr
Syringe Size 10 µl to 60 ml plastic/glass syringe 9.1 mm (max.)
Max. Force (low speed) 50 kg 4.0 kg
Max Travel Length 120 mm 60 mm
Max Travel Speed 150 mm/min 108 mm/min
Min Travel Speed 0.131 µm/min 0.3516 µm/min
Micro step, 1/x 120mm 60mm
Step resolution 0.015 µm 0.00586 µm
Step Volume 0.0026 µl (ID=15 mm or ~10 ml syringe)
Interface to PC USB to RS-485 adapter USB to RS-485 adapter
No. of Syringe Pump 1-4 (expandable up to 8) expandable up to 10
Power Source DC12V/1.2A, per pump module DC12V/1.2A, per pump module
Dimension (L x W x H) 250 mm x 66 mm x 115 mm 170 mm x 34 mm x (40+25) mm
Weight 1.8 kg, per pump module 0.15 kg, per pump module

Step2: Define the number of pump modules and power sets

ASPM100 syringe pump

Step3: Contact us for enquiries and quotations

You can order online using our secure checkout process, or contact us via email: sales@airekacells.com. Purchase Orders are accepted from Academics.
